| --Feature |
- Introduce PWM Switch Technology and new intelligent chip of switch power supply technology.Perform high reliability.
- Built-in EWI filter, 100％ load aging, over voltage protection, over current protection and short-circuit protection. One-year warranty.
- Input and Output are on the different terminal end, avoiding wrong wiring.

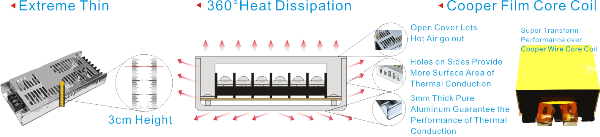

- 3cm height, easy to be fixed in light box
- Cooper film core coil, high performance
- Voltage Withstand: input to output 3KV AC/min; input to earth 1.5KVAC/min
- Starting time︰5-10ms（typically）
- Working temperature︰-25°C - +70°C
- Storing temperature︰-30°C -+85°C
- Mean time between failure︰﹥50,000hours
- Heat Dissipating︰natural cooling
|
| |
| --Specification |
| 5V DC Series |
| Item No. |
Input |
Output |
Output Watt |
Size |
Packing |
| LD-5E200VNB |
170-264V AC 50/60Hz |
5VDC 40A |
200 |
190*84*30mm |
40pcs/ctn, 25kgs |
|
| |
| 12V DC Series |
| Item No. |
Input |
Output |
Output Watt |
Size |
Packing |
| LD-5E200VNB |
170-264V AC 50/60Hz |
12VDC 16.66A |
200 |
190*84*30mm |
40pcs/ctn, 25kgs |
|
| |
| 24V DC Series |
| Item No. |
Input |
Output |
Output Watt |
Size |
Packing |
| LD-24E200VNB |
170-264V AC 50/60Hz |
24VDC 8.33A |
200 |
190*84*30mm |
40pcs/ctn, 25kgs |
|
| |

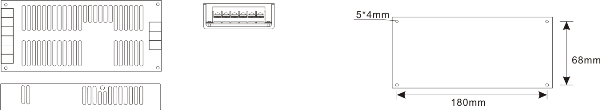

| --Fixing Size |
 |
| |
| |
|
