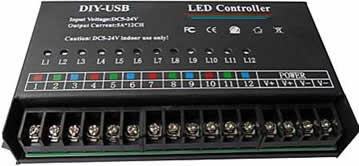

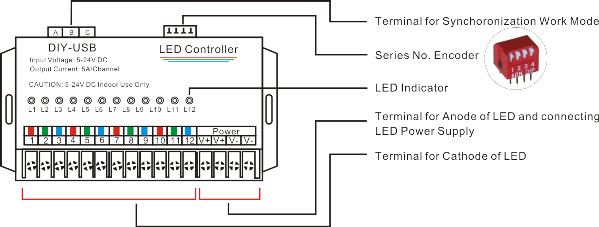

Series No.Encoder is used to define the ID of each Flasher in the sign system which multiple flashers are used and working in sychoronization mode.

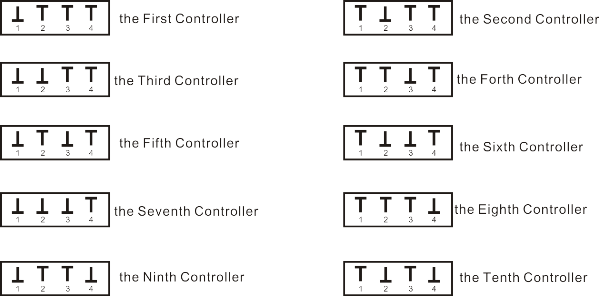

Value of the keys on encoder
Status

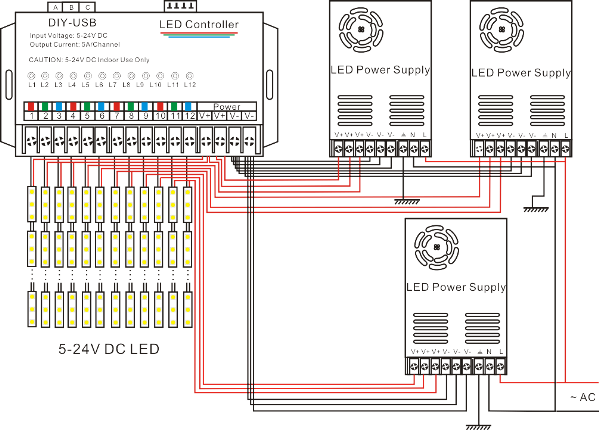

Single Working Mode Wiring

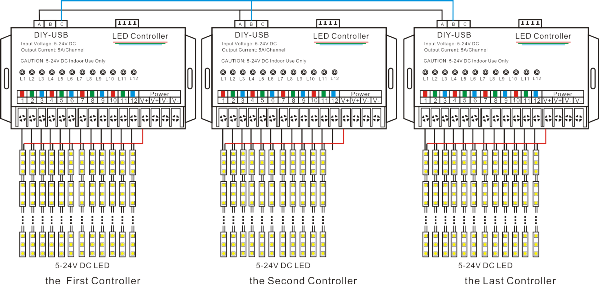

Wiring for Synchoronization Working Mode
At Synchoronization working mode, it is the same way to connect LED and Power supply with the flashers as single working mode. The difference is it is to Wiring Synchoronization Terminal and Define the ID for each flasher. To activate synchoronization working mode, firstly define the ID through Series No.Encoder for each flasher as below at ascending order. The ID number must be continuous. Secondly, connect port A of synchoronization terminal on all flasher together and connect port C of synchoronization terminal on first flasher with all port B of synchoronization terminal on the rest flashers.
