Neon Accessories |
| |
| HT Cable |
|
-Used for neon sign or cold cathode light applications.
- Fire & Flame Retardant(except transparent one).
- UV & Ozone Resistant.
- Oil Resistant.
- Sunlight Resistant.
- Insulation Material: Silicone and PVC for options
Color: White, Black, Transparent(only available for silicone)
|
|
| Silicone Cable--EN 50143-B Compliant |
| Item No. |
Composition |
Uo(KV) |
U(KV) |
ØExt.(mm) |
Max.Temp(°C) |
Section Area(mm2) |
| HTC-6S |
Silicone |
3 |
6 |
4.2 |
180 |
0.4 |
| HTC-10S |
Silicone |
5 |
10 |
6.3 |
180 |
1.0 |
| HTC-15S |
Silicone |
7.5 |
15 |
7.5 |
180 |
1.0 |
|
| |
|
| Electrode Cap |
| Silicone End Cap |
 |
|
 |
|
 |
| 10mm white |
10mm black |
10mm white |
|
13mm transparent |
13mm black |
13mm white |
|
16mm transparent |
16mm black |
16mm white |
 |
|
 |
|
|
|
|
| 18mm Transparent |
18mm black |
18mm white |
|
20mm transparent |
20mm black |
20mm white |
|
|
|
|
|
| |
| Silicone Sleeve |
 |
|
 |
|
 |
| 10mm white |
10mm black |
10mm white |
|
13mm transparent |
13mm black |
13mm white |
|
16mm transparent |
16mm black |
16mm white |
 |
|
 |
|
|
|
|
| 18mm Transparent |
18mm black |
18mm white |
|
20mm transparent |
20mm black |
20mm white |
|
|
|
|
|
|
|

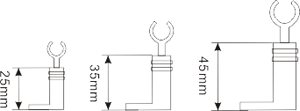

| Tube Support |
| Polycarbinet Tube Support |
 |
110 Sereies |
| Ø8, |
 |
| Ø10, |
| Ø12, |
| Ø15, |
| Ø18, |
| Ø20 |
| Color: Black and Transparent |
|
| |
 |
310 Sereies |
| Ø8, |
 |
| Ø10, |
| Ø12, |
| Ø15, |
| Ø18, |
| Ø20 |
| Color: Black and Transparent |
|
| |
| Glass Tube Support, Stainless Steel Base |
 |
10S Sereies |
 |
| Color: Black and Transparent |
|
| |
|
|
|
