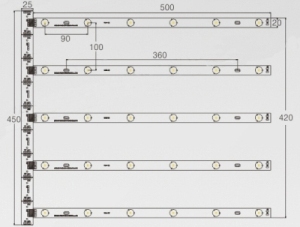

LED Bar Light For Light Box |
| Diffuse LED Light Bar LLB-635352050US--------------------------------------- |
| Product Description |
 |
 |
- This Bar Light is tailored for Ultra Thin light box.
- The lighting source is power LED with Diffuse Lens surface mounted on Pure Aluminum PCB.
- It is plug-in and plug-out wiring.
|
|
| Product Features |
- Super Lumen Output
- Even Bright Lighting Effect
- Plug-in and Plug-out Wiring Easy Installation
- Plug-in and Plug-out Wiring Easy Installation
- Cost-effective
|
|
| Application |
- 3-5cm Deep Ulta Thin Single Vision Light Box
|
|
| Specification |
| Item No. |
LLB-635352050US |
| Working Votage |
24VDC |
| Working Curr-ent (mA) |
220 |
| Power
(W/ Bar) |
5.28 |
| Luminance per LED (lm) |
55 |
| Luminance per Bar (lm) |
330 |
| LED type |
3535 |
| Lens |
PMMA(Japan Raw Material) |
| Nos of LED |
6 |
| Color of LED Light |
White 9000-10000K |
| Distance between LEDs(mm) |
90 |
| Emission Angle |
165° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
| ------------------------------------------------------------------------------------- |
|
| |

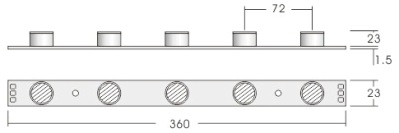

| Edge Light Bar Light LLB-51W362324------------------------------------------- |
| Product Description |
 |
 |
|
This Bar Light is tailored for Dual Vision Light Box. Special Optical Treatment is taken on LED lighting source. Waterproof is optional.
|
| Product Feature |
|
It is to be fixed along the side of Light Box.
The lens used on the bar light is Auto Lens.
Much more efficient Lighting Effect will be created if working with reflection film for single vision light box.
Constant Current Working Mode, no blinking.
|
  |

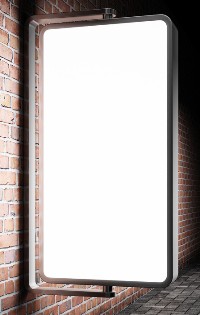

| Application |
| 15-20CM Deep Single or Dusl Vision Light Box |
| Specification |
| Item No. |
LLB-51W362324 |
| Working Votage |
24VDC |
| Working Curr-ent (mA) |
500 |
| Power
(W/ Bar) |
12 |
| Luminance per LED (lm) |
180 |
| Luminance per Bar (lm) |
900 |
| LED type |
OSRAM Power LED |
| Lens |
PMMA(Japan Raw Material) |
| Nos of LED |
5 |
| Color of LED Light |
White 6500+/-200K |
| CRI |
Ra>=75 |
| Distance between LEDs(mm) |
80 |
| Emission Angle |
15°*40° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
|
| -------------------------------------------------------------------------------------- |
| |

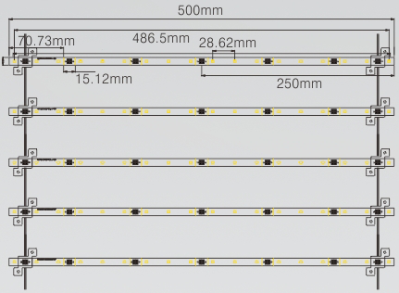

| Foldable LED Light Bar for Single Vision Light Box LLB-283512/1855------- |
| Product Description |
 |
|
It uses cost-effective 2835 LED as lighting source.

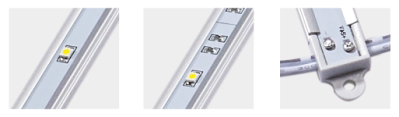

The bar light is packed on Aluminum Profile Housing.
The bar lights are wired in a curtain way. Tailored wire with wiring terminals is to join bar lights as a panel light.
|
 |
| Product Feature |
|
Curtain Structure, Easy Installation.
Super Power 2835 LED, cost-effective.
|
| Application |
| 6-10CM Deep Single Vision Light Box |
| Specification |
| Item No. |
LLB-283512/1855 |
| Working Votage |
24VDC |
| Working Curr-ent (mA) |
50/unit |
| Power
(W/ Bar) |
2.4/3.6 |
| Luminance per LED (lm) |
18-20 |
| Luminance per Bar (lm) |
240/360 |
| LED type |
2835 |
| Nos of LED |
12/18 |
| Color of LED Light |
White 9000-10000K |
| Distance between LEDs(mm) |
25/29.88 |
| Emission Angle |
120° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
|
| -------------------------------------------------------------------------------------- |

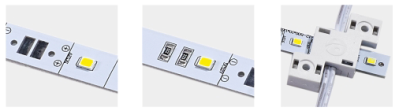

| Foldable LED Light Bar for Single Vision Light Box LLB-28351850N---------- |
| Product Description |
 |
|
It uses cost-effective 2835 LED as lighting source.
The bar lights are wired in a curtain way. Tailored wire with wiring terminals is to join bar lights as a panel light.
|
 |
| Product Feature |
|
Curtain Structure, Easy Installation.
Super Power 2835 LED, cost-effective.
|
| Application |
| 6-10CM Deep Single Vision Light Box |
| Specification |
| Item No. |
LLB-28351850N |
| Working Votage |
12VDC |
| Working Curr-ent (mA) |
50/unit |
| Power
(W/ Bar) |
3.24 |
| Luminance per LED (lm) |
18-20 |
| Luminance per Bar (lm) |
360 |
| LED type |
2835 |
| Nos of LED |
18 |
| Color of LED Light |
White 9000-10000K |
| Distance between LEDs(mm) |
28 |
| Emission Angle |
120° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
|
| -------------------------------------------------------------------------------------- |

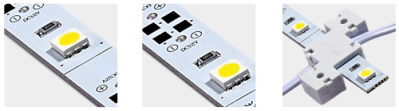

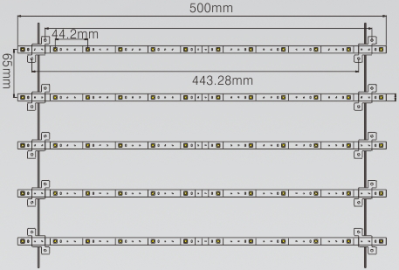

| Foldable LED Light Bar for Dual Vision Light Box LLB-D50501250------------ |
| Product Description |
 |
|
It uses SMD5050 LED as lighting source.
The bar lights are wired in a curtain way. Tailored wire with wiring terminals is to join bar lights as a panel light.
> |
 |
| Product Feature |
|
Curtain Structure, Easy Installation.
Famous Brand SMD5050 LED as Lighting Source
Dual Side Light
|
| Application |
| 12-20CM Deep Dual Vision Light Box |
| Specification |
| Item No. |
LLB-D50501250 |
| Working Votage |
12VDC |
| Working Curr-ent (mA) |
60/unit |
| Power
(W/ Bar) |
5 |
| Luminance per LED (lm) |
18-20 |
| Luminance per Bar (lm) |
432-480 |
| LED type |
5050 |
| Nos of LED |
24 |
| Color of LED Light |
White 6500K |
| Distance between LEDs(mm) |
44.2 |
| Emission Angle |
120° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
|
| -------------------------------------------------------------------------------------- |

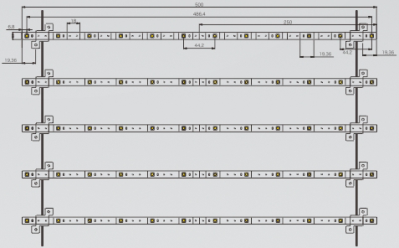

| Foldable LED Light Bar for Single Vision Light Box LLB-S50501250------------ |
| Product Description |
 |
| It uses SMD5050 LED as lighting source.
The bar lights are wired in a curtain way. Tailored wire with wiring terminals is to join bar lights as a panel light.
> |
 |
| Product Feature |
| Curtain Structure, Easy Installation.
Famous Brand SMD5050 LED as Lighting Source |
| Application |
| 6-10CM Deep Single Vision Light Box |
| Specification |
| Item No. |
LLB-S50501250 |
| Working Votage |
12VDC |
| Working Curr-ent (mA) |
60/unit |
| Power
(W/ Bar) |
2.5 |
| Luminance per LED (lm) |
18-20 |
| Luminance per Bar (lm) |
216-240 |
| LED type |
5050 |
| Nos of LED |
12 |
| Color of LED Light |
White 6500K |
| Distance between LEDs(mm) |
44.2 |
| Emission Angle |
120° |
| Working Temperature |
-20°C-60°C |
| Lumen Decay Rate |
1-3%/ 5000hs |
| Life Span |
50000hs |
 |
|
|
| |
