| General Product info |
 |
>Wide Range of Adjustable Voltage
The output voltage is adjustable at a wide range.
5V DC Power Supply: 2.5V - 7V;
12V DC Power Supply: 9V - 16V;
24V DC Power Supply: 18V - 27V
Customization is available upon request. |
>Progressive Start
It is not instant start. It is starting progressively. It outputs progressively in
7 seconds
after powering on and gets to rated voltage in 15 seconds.
It
protects LED light from voltage/current surge by sudden
switching on/off. |
 |

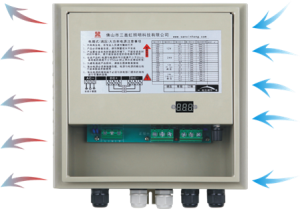

>Cabinet Housing
Dustproof and Rainproof housing. No need extra
electrical box for protection
purpose. |
>Dual Cooling Fan
The fans are fixed on two sides of housing. One fan blows
cool air into the
heat components and one fan blows out hot
air from the housing. |
>Internal and External Regulator Options
Regularly internal regulator comes with power
supply. External regulator is
available upon request. The cable between power supply and external
regulator can be max 100 meters. |
>Voltage Displaying
Voltage Display is available on the power supply, showing
the voltage value
of output. |
| Benefits of Using Voltage Adjustable Power Supply |
>Make Up Voltage Drop of long wire
Long wire from power supply to LED light will drop voltage much. Our voltage adjustable power supply
can make up the voltage drop and make it possible to fix the power supply at a place where is conven-
ient for future aintenance. |
>Save Cost for Future maintenance
As the wire from power supply to LED Light can be very Long, regularly Max 20 meters, it can be cus-
tomized to 100 meters, the power supply can be fixed in a convenient place. In case the power supply
fails, just bring the power supply and screw driver to make replacement. |
>Multiple LED Lights by one Power Supply
One power supply drives multiple LED lights. |
|
|
＞Fit Various Bad Environment
Our power supply can be used in varied bad environments, such as storm, dust, Sandstorm and so on |
| Product Specification |
| 200W |
|
| Item No. |
LPS-12E200VRR |
LPS-24E200VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
130w-200w |
133w-200w |
| Output current |
12.5A |
7.4A |
Minimum Size Requested
For Output Wire(sq.mm) |
2.0×2 |
1.0×2 |
| Product Size(mm) |
199x110x48 |
| Packing |
30pcs/ctn |
| Weight |
22kgs/ctn |
| Dimension of Package (mm) |
430x350x295 |
|
| 400W |
|
| Item No. |
LPS-12E400VRR |
LPS-24E400VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
225w-400w |
270w-400w |
| Output current |
25A |
15A |
Minimum Size Requested
For Output Wire(sq.mm) |
2.5×3 |
1.5×3 |
| Product Size(mm) |
200x118x54 |
| Packing |
20pcs/ctn |
| Weight |
17.5kgs/ctn |
| Dimension of Package (mm) |
390x320x270 |
|
| Load Chart - 200W and 400W |
| No. |
Output Voltage |
12VDC200W |
12VDC 400W |
|
Output Voltage |
24VDC 200W |
24VDC 400W |
| Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
| 1 |
16V |
12.5A |
200W |
25A |
400W |
27V |
7.4A |
200W |
14.8A |
400W |
| 2 |
15V |
187.5W |
375W |
26V |
192.4W |
385W |
| 3 |
14V |
175W |
350W |
25V |
185W |
370W |
| 4 |
13V |
162.5W |
325W |
24V |
177.6W |
355W |
| 5 |
12V |
150W |
300W |
23V |
170.2W |
340W |
| 6 |
11V |
137.5W |
275W |
22V |
162.8W |
326W |
| 7 |
10V |
125W |
250W |
21V |
155.4W |
311W |
| 8 |
9V |
112.5W |
225W |
20V |
148W |
296W |
| 9 |
|
|
|
19V |
140.6W |
281W |
|
 |
| 450W |
|
| Item No. |
LPS-12E450VRR |
LPS-24E450VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
252w-450w |
311w-450w |
| Output current |
28A |
17.3A |
Minimum Size Requested
For Output Wire(sq.mm) |
2.5×3 |
2.5×2 |
| Product Size(mm) |
245x220x90 |
| Packing |
8pcs/ctn |
| Weight |
24kgs/ctn |
| Dimension of Package (mm) |
445x290x580 |
|
| 650W |
|
| Item No. |
LPS-12E650VRR |
LPS-24E650VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
365w- 650w |
432w-650w |
| Output current |
40.6A |
24A |
Minimum Size Requested
For Output Wire(sq.mm) |
2.5×4 |
4.0×2 |
| Product Size(mm) |
255x250x90 |
| Packing |
8pcs/ctn |
| Weight |
28kgs/ctn |
| Dimension of Package (mm) |
445x320x600 |
|
| 800W |
|
| Item No. |
LPS-12E800VRR |
LPS-24E800VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
450w- 800w |
533w-800w |
| Output current |
50A |
29.6A |
Minimum Size Requested
For Output Wire(sq.mm) |
4.0×4 |
4.0×2 |
| Product Size(mm) |
315x300x90 |
| Packing |
3pcs/ctn |
| Weight |
15kgs/ctn |
| Dimension of Package (mm) |
345x325x370 |
|
| 1000W |
|
| Item No. |
LPS-12E1000VRR |
LPS-24E1000VRR |
|
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
562w- 1000w |
666w-1000w |
| Output current |
62.5A |
37A |
Minimum Size Requested
For Output Wire(sq.mm) |
4.0×5 |
4.0×3 |
| Product Size(mm) |
315x300x90 |
| Packing |
3pcs/ctn |
| Weight |
15kgs/ctn |
| Dimension of Package (mm) |
345x325x370 |
|
| 1200W |
|
| Item No. |
LPS-12E1200VRR |
LPS-24E1200VRR |
|
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
DC 9v-16v |
DC 18-26v |
| Output Power |
675w- 1200w |
800w-1200w |
| Output current |
75A |
44.4A |
Minimum Size Requested
For Output Wire(sq.mm) |
4.0×5 |
4.0×4 |
| Product Size(mm) |
315x300x90 |
| Packing |
3pcs/ctn |
| Weight |
15kgs/ctn |
| Dimension of Package (mm) |
345x325x370 |
|
| 2000W |
|
| Item No. |
|
LPS-24E2000VRR |
 |
| Input voltage |
AC 220V±15% 50/60Hz |
| Output voltage |
|
DC 18-26v |
| Output Power |
|
1333w-2000w |
| Output current |
|
74A |
Minimum Size Requested
For Output Wire(sq.mm) |
|
4.0×4 |
| Product Size(mm) |
410x316x123 |
| Packing |
4pcs/ctn |
| Weight |
27kgs/ctn |
| Dimension of Package (mm) |
590x315x485 |
|
| Load Chart - 12V DC Voltage Adjustable Power Supply |
| No. |
Output Voltage |
450W |
650W |
800W |
1000W |
1200W |
| Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
| 1 |
16V |
28.1A |
450W |
40.6A |
650W |
50A |
800W |
62.5A |
1000W |
75A |
1200W |
| 2 |
15V |
422W |
609W |
750W |
938W |
1125W |
| 3 |
14V |
393W |
568W |
700W |
875W |
1050W |
| 4 |
13V |
365W |
528W |
650W |
813W |
975W |
| 5 |
12V |
337W |
487W |
600W |
750W |
900W |
| 6 |
11V |
309W |
447W |
550W |
688W |
825W |
| 7 |
10V |
281W |
406W |
500W |
625W |
750W |
| 8 |
9V |
253W |
365W |
450W |
563W |
675W |
|
| Load Chart - 24V DC Voltage Adjustable Power Supply |
| No. |
Output Voltage |
450W |
650W |
800W |
1000W |
1200W |
2000W |
| Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
Output Current |
Output Power |
| 1 |
27V |
17.3A |
|
24.1A |
650W |
29.6A |
800W |
37A |
1000W |
44.5A |
1200W |
74.1A |
2000W |
| 2 |
26V |
450W |
626W |
760W |
962W |
1157W |
1926W |
| 3 |
25V |
433W |
602W |
740W |
925W |
1112W |
1852W |
| 4 |
24V |
415W |
578W |
710W |
888W |
1068W |
1778W |
| 5 |
23V |
398W |
554W |
681W |
851W |
1023W |
1704W |
| 6 |
22V |
381W |
530W |
651W |
814W |
979W |
1630W |
| 7 |
21V |
363W |
506W |
622W |
777W |
934W |
1556W |
| 8 |
20V |
346W |
482W |
592W |
740W |
890W |
1482W |
| 9 |
19V |
329W |
457W |
562W |
703W |
845W |
1408W |
|

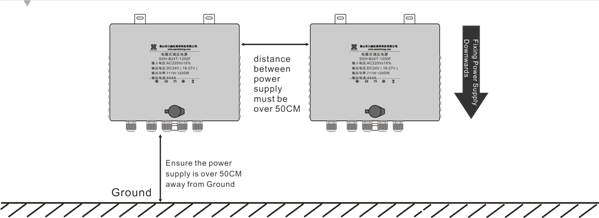

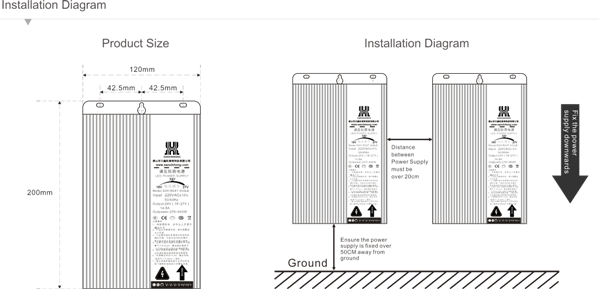

| Wiring Diragram |
 |

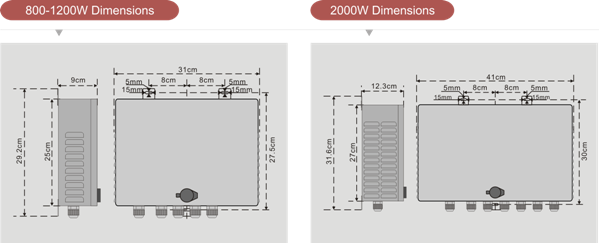

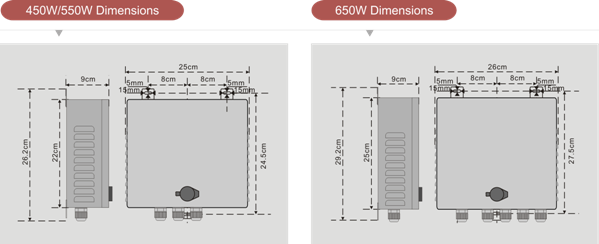

| Product Dimensions |
 |
 |
| |
|
| |
|
